Vent-Axia Jupiter 400CTS De-Stratification Unit - 457488

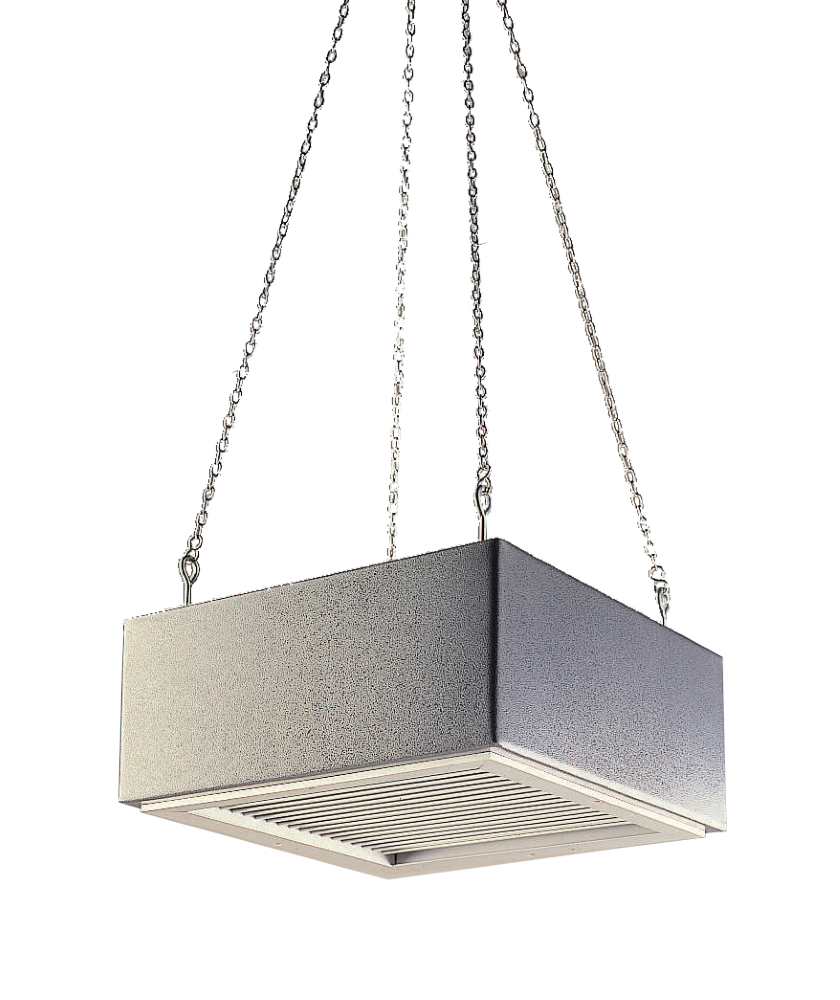

The Vent-Axia Jupiter range of de-stratification units is based on direct drive axial fans, housed in a neat and sturdy casing complete with eyebolts for suspension from chains or steel wires. Ideal for applications where the proposed mounting height requires higher velocity fans or where open bladed ceiling fans are considered unsuitable. Jupiter fans can be used in stores, warehouses, factories, workshops, as well as many other industrial applications. The unit provides effective and

positive air movement to improve the working environment, particularly during summer months. In addition Jupiter fans can be used during the winter to re-circulate hot air from ceilings and roofs down to living and working areas.

Available in two sizes

Speed controllable

High velocity fans

Supplied with grey coated finish

Available with built-in thermostat
Duty CFM: 3000

Duty m3/s:  1.415

Speed RPM: 1320

Sound dBA@3m: 51

Supply voltage:  220-240V/1/50Hz

Dimension: Height: 600mm x Width: 490mm x Depth: 93mm

Weight: 16kg
Criteria
Specification: Duty CFM: 3000 Duty m3/s:  1.415 Speed RPM: 1320 Sound dBA@3m: 51 Supply voltage:  220-240V/1/50Hz Dimension: Height: 600mm x Width: 490mm x Depth: 93mm Weight: 16kgFeatures: Available in two sizes Speed controllable High velocity fans Supplied with grey coated finish Available with built-in thermostatManufacturer Code: 457488Barcode: 5015135424244
Short Description
Vent-Axia Jupiter 400cts De-Stratification Unit
Downloads
Download 457488 Product Manual

Specification

Applicable Area	Warehouse
Collection Name	Jupiter
Minimum Voltage	220 v
Mounting	Ceiling
Voltage	240 v
Height	600 mm
Width	490 mm
