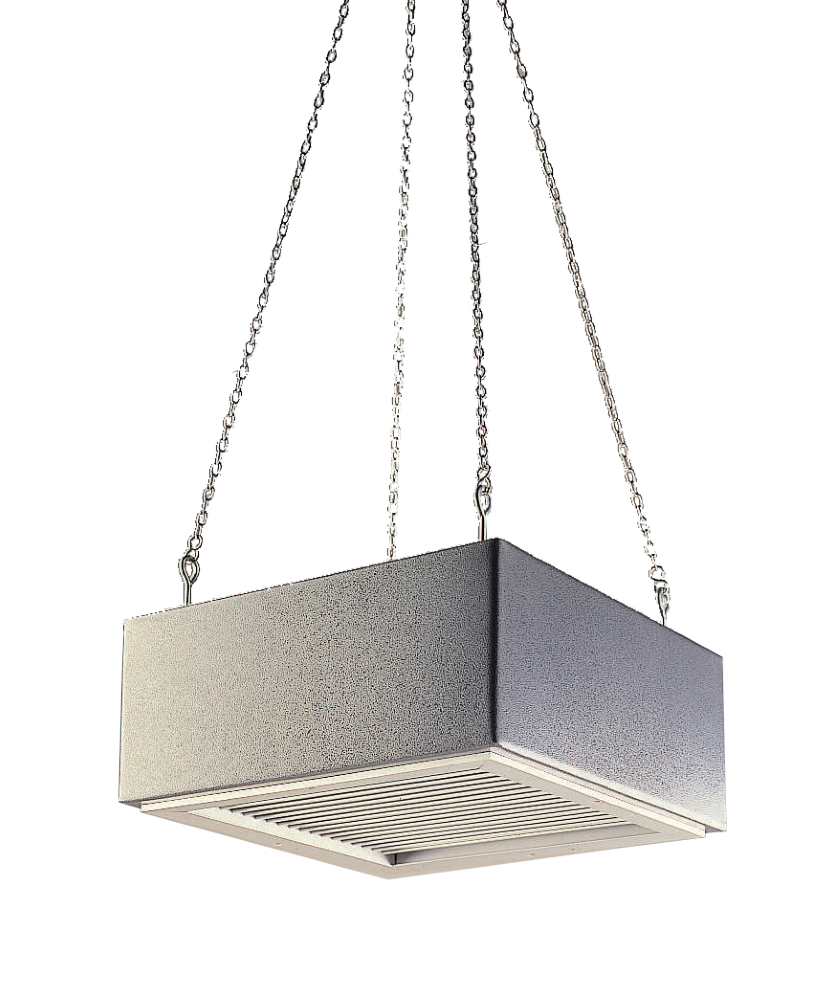

Vent-Axia Jupiter 315CTS De-Stratification Unit - 457486

The Vent-Axia Jupiter range of de-stratification units is based on direct drive axial fans, housed in a neat and sturdy casing complete with eyebolts for suspension from chains or steel wires. Ideal for applications where the proposed mounting height requires higher velocity fans or where open bladed ceiling fans are considered unsuitable. Jupiter fans can be used in stores, warehouses, factories, workshops, as well as many other industrial applications. The unit provides effective and

positive air movement to improve the working environment, particularly during summer months. In addition Jupiter fans can be used during the winter to re-circulate hot air from ceilings and roofs down to living and working areas.

Available in two sizes

Speed controllable

High velocity fans

Supplied with grey coated finish

Available with built-in thermostat
Duty CFM: 1290

Duty m3/s:  0.610

Speed RPM: 1380

Sound dBA@3m: 45

Supply voltage:  220-240V/1/50Hz

Dimension: Height: 500mm x Width: 380mm x Depth: 84mm

Weight: 11kg
Downloads
Download 457486 Product Manual

Specification

Applicable Area	Warehouse
Collection Name	Jupiter
Finish Or Colour	Grey
Minimum Voltage	220 v
Mounting	Ceiling
Noise Level	45 Db
power consumption	150 w
Remote Control	No
Voltage	240 v
Height	500 mm
Width	380 mm
